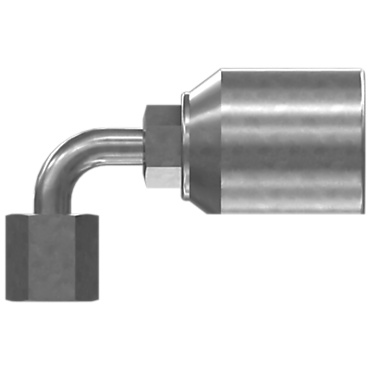

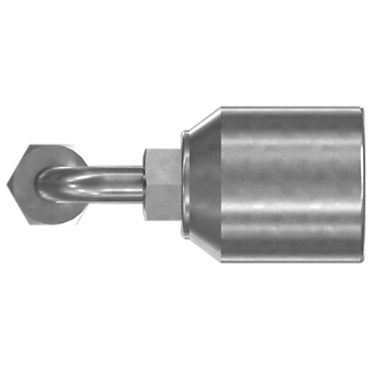

- Caterpillar 1242004 124-2004: Permanent Coupling | Cat Permanent Coupling JIC – 90 Degree Female Swivel
1242004 CATERPILLAR 124-2004: Permanent Coupling | Cat Permanent Coupling JIC – 90 Degree Female Swivel
| Manufacturer / Suplier | CATERPILLAR |
| Manufacturer's No. | 1242004 |
| Name | 124-2004: Permanent Coupling | Cat Permanent Coupling JIC – 90 Degree Female Swivel |
Connector: Permanent
Material: STEEL
Coating: Zinc Plated
Shape: 90 Deg
Connector Type: -4 JIC FEMALE SWIVEL
Drop Length (mm): 18
Drop Length (in): 0.71
Length (mm): 55
Cut-Off Factor (mm): 30
Cut-Off Factor (in): 1.18
Recommended Hose Size (mm): 9.5
Compatible With: SAE 100R1, SAE 100R5, SAE 100R2, SAE 100R16, SAE J1402, COOLANT HOSE
Hex Size (mm): 14.29
Description: Permanent Coupling 6MN
Applications: Permanent Coupling for use with hydraulic hose. For additional information contact your CAT local dealer
Material: STEEL
Coating: Zinc Plated
Shape: 90 Deg
Connector Type: -4 JIC FEMALE SWIVEL
Drop Length (mm): 18
Drop Length (in): 0.71
Length (mm): 55
Cut-Off Factor (mm): 30
Cut-Off Factor (in): 1.18
Recommended Hose Size (mm): 9.5
Compatible With: SAE 100R1, SAE 100R5, SAE 100R2, SAE 100R16, SAE J1402, COOLANT HOSE
Hex Size (mm): 14.29
Description: Permanent Coupling 6MN
Applications: Permanent Coupling for use with hydraulic hose. For additional information contact your CAT local dealer
