- Caterpillar 1242003 124-2003: Permanent Coupling | Cat Permanent Coupling JIC – 90 Degree Female Swivel

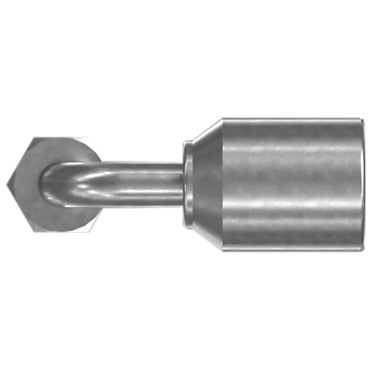

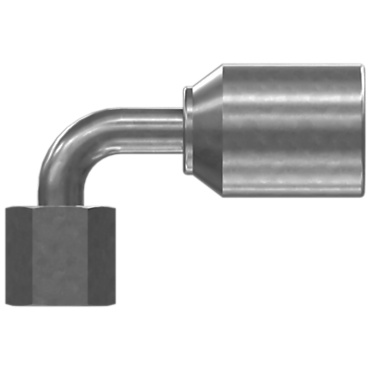

1242003 CATERPILLAR 124-2003: Permanent Coupling | Cat Permanent Coupling JIC – 90 Degree Female Swivel
| Manufacturer / Suplier | CATERPILLAR |
| Manufacturer's No. | 1242003 |
| Name | 124-2003: Permanent Coupling | Cat Permanent Coupling JIC – 90 Degree Female Swivel |
Connector: Permanent
Material: STEEL
Coating: Zinc Plated
Shape: 90 Deg
Connector Type: -6 JIC FEMALE SWIVEL
Drop Length (mm): 22
Drop Length (in): 0.87
Length (mm): 56
Cut-Off Factor (mm): 30
Cut-Off Factor (in): 1.18
Recommended Hose Size (mm): 7.9
Compatible With: SAE 100R16
Hex Size (mm): 17.48
Description: Permanent Coupling 5MN
Applications: Permanent Coupling for use with hydraulic hose. For additional information contact your CAT local dealer
Material: STEEL
Coating: Zinc Plated
Shape: 90 Deg
Connector Type: -6 JIC FEMALE SWIVEL
Drop Length (mm): 22
Drop Length (in): 0.87
Length (mm): 56
Cut-Off Factor (mm): 30
Cut-Off Factor (in): 1.18
Recommended Hose Size (mm): 7.9
Compatible With: SAE 100R16
Hex Size (mm): 17.48
Description: Permanent Coupling 5MN
Applications: Permanent Coupling for use with hydraulic hose. For additional information contact your CAT local dealer
