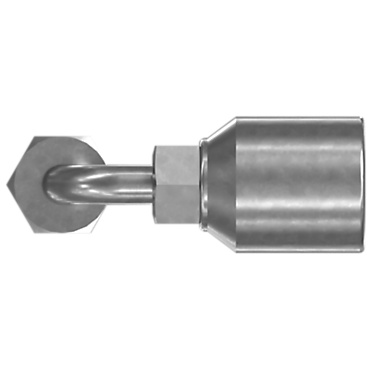

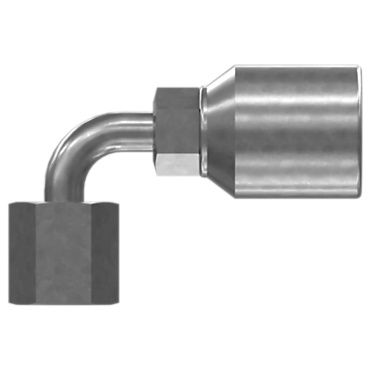

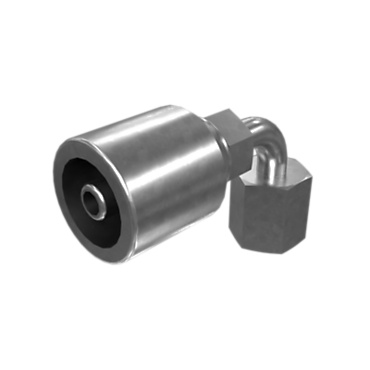

1242001 CATERPILLAR 124-2001: Permanent Coupling | Cat Permanent Coupling JIC – 90 Degree Female Swivel
| Manufacturer / Suplier | CATERPILLAR |
| Manufacturer's No. | 1242001 |
| Name | 124-2001: Permanent Coupling | Cat Permanent Coupling JIC – 90 Degree Female Swivel |
Connector: Permanent
Material: STEEL
Coating: Zinc Plated
Shape: 90 Deg
Connector Type: -5 JIC FEMALE SWIVEL
Drop Length (mm): 20
Drop Length (in): 0.79
Length (mm): 49
Cut-Off Factor (mm): 28
Cut-Off Factor (in): 1.1
Recommended Hose Size (mm): 6.4
Compatible With: SAE 100R1, SAE 100R2, SAE 100R5, SAE 100R16, COOLANT HOSE
Hex Size (mm): 15.88
Description: Permanent Coupling 4MN
Applications: Permanent Coupling for use with hydraulic hose. For additional information contact your CAT local dealer
Material: STEEL
Coating: Zinc Plated
Shape: 90 Deg
Connector Type: -5 JIC FEMALE SWIVEL
Drop Length (mm): 20
Drop Length (in): 0.79
Length (mm): 49
Cut-Off Factor (mm): 28
Cut-Off Factor (in): 1.1
Recommended Hose Size (mm): 6.4
Compatible With: SAE 100R1, SAE 100R2, SAE 100R5, SAE 100R16, COOLANT HOSE
Hex Size (mm): 15.88
Description: Permanent Coupling 4MN
Applications: Permanent Coupling for use with hydraulic hose. For additional information contact your CAT local dealer
