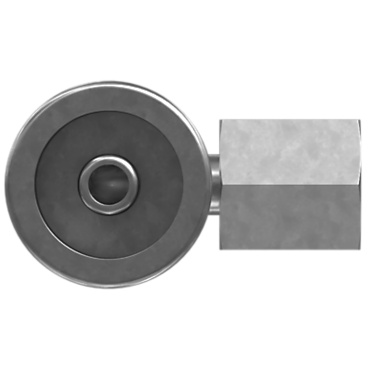

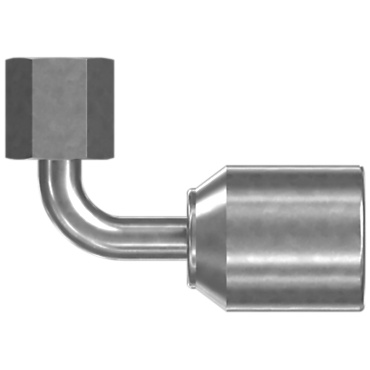

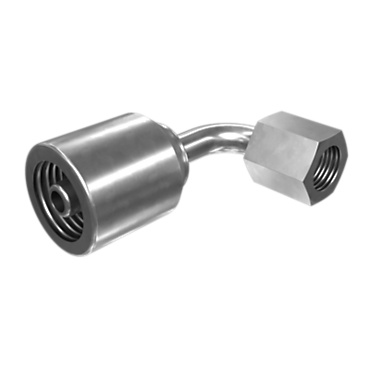

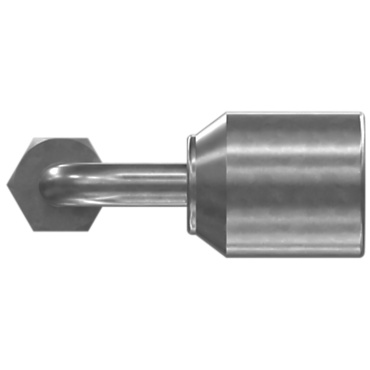

1242000 CATERPILLAR 124-2000: Permanent Coupling | Cat Permanent Coupling JIC – 90 Degree Female Swivel
| Manufacturer / Suplier | CATERPILLAR |
| Manufacturer's No. | 1242000 |
| Name | 124-2000: Permanent Coupling | Cat Permanent Coupling JIC – 90 Degree Female Swivel |
Connector: Permanent
Material: STEEL
Coating: Zinc Plated
Shape: 90 Deg
Connector Type: -4 JIC FEMALE SWIVEL
Drop Length (mm): 18
Drop Length (in): 0.71
Length (mm): 46
Cut-Off Factor (mm): 25
Cut-Off Factor (in): 0.98
Recommended Hose Size (mm): 6.4
Compatible With: SAE 100R1, SAE 100R2, SAE 100R5, SAE 100R16, COOLANT HOSE
Hex Size (mm): 14.29
Description: Permanent Coupling 4MN
Applications: Permanent Coupling for use with hydraulic hose. For additional information contact your CAT local dealer
Material: STEEL
Coating: Zinc Plated
Shape: 90 Deg
Connector Type: -4 JIC FEMALE SWIVEL
Drop Length (mm): 18
Drop Length (in): 0.71
Length (mm): 46
Cut-Off Factor (mm): 25
Cut-Off Factor (in): 0.98
Recommended Hose Size (mm): 6.4
Compatible With: SAE 100R1, SAE 100R2, SAE 100R5, SAE 100R16, COOLANT HOSE
Hex Size (mm): 14.29
Description: Permanent Coupling 4MN
Applications: Permanent Coupling for use with hydraulic hose. For additional information contact your CAT local dealer
