- Caterpillar 1241991 124-1991: Permanent Coupling | Cat Permanent Coupling JIC – 45 Degree Female Swivel

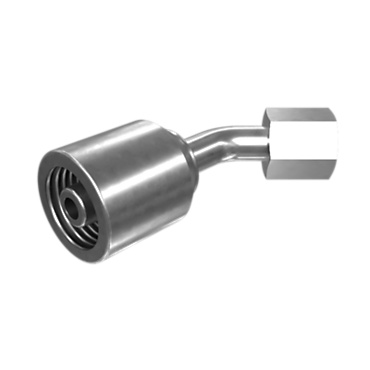

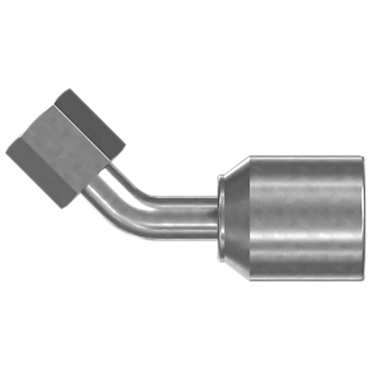

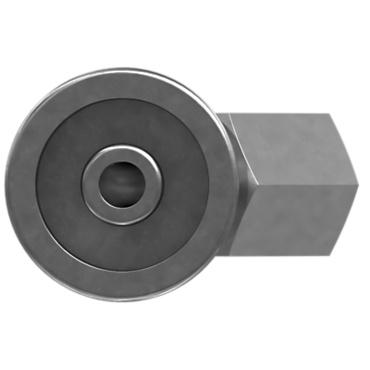

1241991 CATERPILLAR 124-1991: Permanent Coupling | Cat Permanent Coupling JIC – 45 Degree Female Swivel
| Manufacturer / Suplier | CATERPILLAR |
| Manufacturer's No. | 1241991 |
| Name | 124-1991: Permanent Coupling | Cat Permanent Coupling JIC – 45 Degree Female Swivel |
Connector: Permanent
Material: STEEL
Coating: Zinc Plated
Shape: 45 Deg
Connector Type: -6 JIC FEMALE SWIVEL
Drop Length (mm): 15
Drop Length (in): 0.59
Length (mm): 66
Cut-Off Factor (mm): 40
Cut-Off Factor (in): 1.57
Recommended Hose Size (mm): 9.5
Compatible With: SAE 100R1, SAE 100R5, SAE 100R2, SAE 100R16, SAE J1402, COOLANT HOSE
Hex Size (mm): 17.48
Description: Permanent Coupling 6MN
Applications: Permanent Coupling for use with hydraulic hose. For additional information contact your CAT local dealer
Material: STEEL
Coating: Zinc Plated
Shape: 45 Deg
Connector Type: -6 JIC FEMALE SWIVEL
Drop Length (mm): 15
Drop Length (in): 0.59
Length (mm): 66
Cut-Off Factor (mm): 40
Cut-Off Factor (in): 1.57
Recommended Hose Size (mm): 9.5
Compatible With: SAE 100R1, SAE 100R5, SAE 100R2, SAE 100R16, SAE J1402, COOLANT HOSE
Hex Size (mm): 17.48
Description: Permanent Coupling 6MN
Applications: Permanent Coupling for use with hydraulic hose. For additional information contact your CAT local dealer
