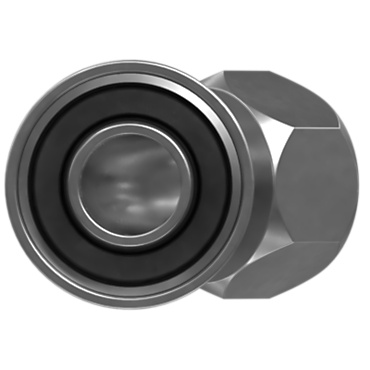

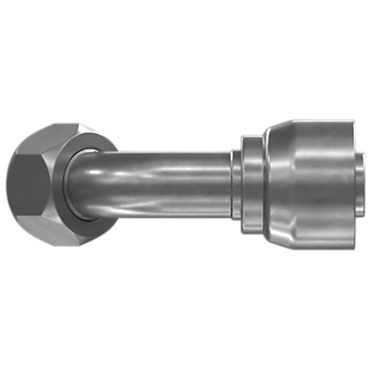

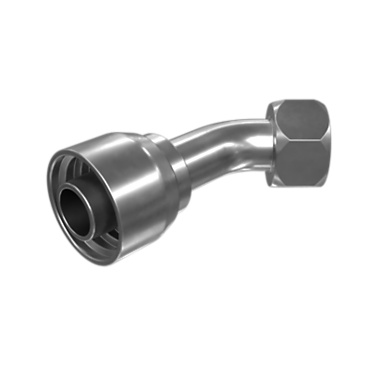

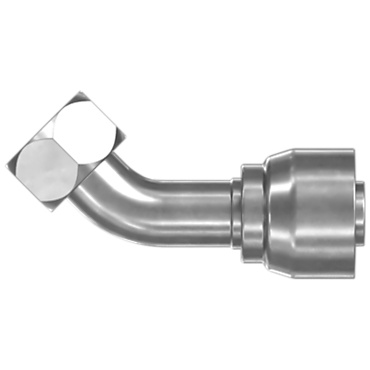

1241988 CATERPILLAR 124-1988: Permanent Coupling | Cat Permanent Coupling JIC – 45 Degree Female Swivel
| Manufacturer / Suplier | CATERPILLAR |
| Manufacturer's No. | 1241988 |
| Name | 124-1988: Permanent Coupling | Cat Permanent Coupling JIC – 45 Degree Female Swivel |
Connector: Permanent
Material: STEEL
Coating: Zinc Plated
Shape: 45 Deg
Connector Type: -20 JIC FEMALE SWIVEL
Drop Length (mm): 37
Drop Length (in): 1.46
Length (mm): 145
Cut-Off Factor (mm): 104
Cut-Off Factor (in): 4.09
Recommended Hose Size (mm): 31.8
Compatible With: SAE 100R1, SAE 100R2, SAE 100R4, SAE 100R5
Hex Size (mm): 50.8
Description: Permanent Coupling 20MN
Applications: Permanent Coupling for use with hydraulic hose. For additional information contact your CAT local dealer
Material: STEEL
Coating: Zinc Plated
Shape: 45 Deg
Connector Type: -20 JIC FEMALE SWIVEL
Drop Length (mm): 37
Drop Length (in): 1.46
Length (mm): 145
Cut-Off Factor (mm): 104
Cut-Off Factor (in): 4.09
Recommended Hose Size (mm): 31.8
Compatible With: SAE 100R1, SAE 100R2, SAE 100R4, SAE 100R5
Hex Size (mm): 50.8
Description: Permanent Coupling 20MN
Applications: Permanent Coupling for use with hydraulic hose. For additional information contact your CAT local dealer
