- Caterpillar 1241987 124-1987: 38.1mm Hex Size JIC Permanent Coupling | Cat® Jic Permanent Coupling For Steering Oil Cooler Lines

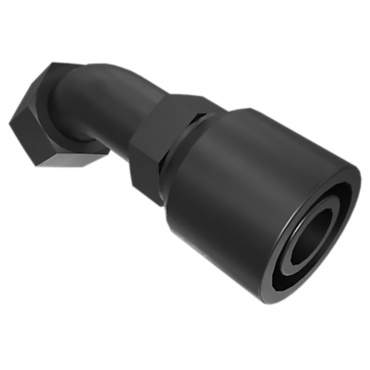

1241987 CATERPILLAR 124-1987: 38.1mm Hex Size JIC Permanent Coupling | Cat® Jic Permanent Coupling For Steering Oil Cooler Lines
| Manufacturer / Suplier | CATERPILLAR |
| Manufacturer's No. | 1241987 |
| Name | 124-1987: 38.1mm Hex Size JIC Permanent Coupling | Cat® Jic Permanent Coupling For Steering Oil Cooler Lines |
Connector: Permanent
Material: STEEL
Coating: Zinc Plated
Shape: 45 Deg
Connector Type: -16 JIC FEMALE SWIVEL
Drop Length (mm): 30
Drop Length (in): 1.18
Length (mm): 122
Cut-Off Factor (mm): 74
Cut-Off Factor (in): 2.91
Recommended Hose Size (mm): 25.4
Compatible With: SAE 100R1, SAE 100R5, SAE 100R2, SAE 100R16, COOLANT HOSE, SAE 100R4
Hex Size (mm): 38.1
Description: Permanent Coupling 16MN
Applications: Permanent Coupling for use with hydraulic hose. For additional information contact your CAT local dealer
Material: STEEL
Coating: Zinc Plated
Shape: 45 Deg
Connector Type: -16 JIC FEMALE SWIVEL
Drop Length (mm): 30
Drop Length (in): 1.18
Length (mm): 122
Cut-Off Factor (mm): 74
Cut-Off Factor (in): 2.91
Recommended Hose Size (mm): 25.4
Compatible With: SAE 100R1, SAE 100R5, SAE 100R2, SAE 100R16, COOLANT HOSE, SAE 100R4
Hex Size (mm): 38.1
Description: Permanent Coupling 16MN
Applications: Permanent Coupling for use with hydraulic hose. For additional information contact your CAT local dealer
