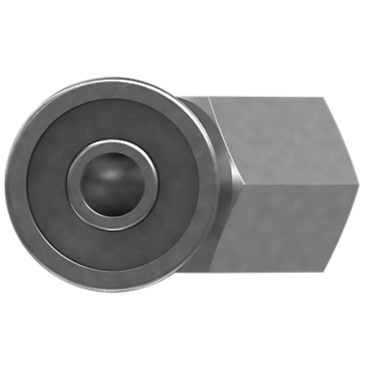

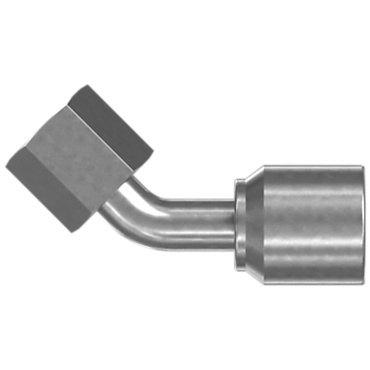

- Caterpillar 1241983 124-1983: Permanent Coupling | Cat Permanent Coupling JIC – 45 Degree Female Swivel
1241983 CATERPILLAR 124-1983: Permanent Coupling | Cat Permanent Coupling JIC – 45 Degree Female Swivel
| Manufacturer / Suplier | CATERPILLAR |
| Manufacturer's No. | 1241983 |
| Name | 124-1983: Permanent Coupling | Cat Permanent Coupling JIC – 45 Degree Female Swivel |
Connector: Permanent
Material: STEEL
Coating: Zinc Plated
Shape: 45 Deg
Connector Type: -8 JIC FEMALE SWIVEL
Drop Length (mm): 16
Drop Length (in): 0.63
Length (mm): 71
Cut-Off Factor (mm): 46
Cut-Off Factor (in): 1.81
Recommended Hose Size (mm): 12.7
Compatible With: SAE 100R1, SAE 100R5, SAE 100R2, SAE 100R16, SAE J1402, COOLANT HOSE, SAE 100R19
Hex Size (mm): 25.4
Description: Permanent Coupling 8MN
Applications: Permanent Coupling for use with hydraulic hose. For additional information contact your CAT local dealer
Material: STEEL
Coating: Zinc Plated
Shape: 45 Deg
Connector Type: -8 JIC FEMALE SWIVEL
Drop Length (mm): 16
Drop Length (in): 0.63
Length (mm): 71
Cut-Off Factor (mm): 46
Cut-Off Factor (in): 1.81
Recommended Hose Size (mm): 12.7
Compatible With: SAE 100R1, SAE 100R5, SAE 100R2, SAE 100R16, SAE J1402, COOLANT HOSE, SAE 100R19
Hex Size (mm): 25.4
Description: Permanent Coupling 8MN
Applications: Permanent Coupling for use with hydraulic hose. For additional information contact your CAT local dealer
