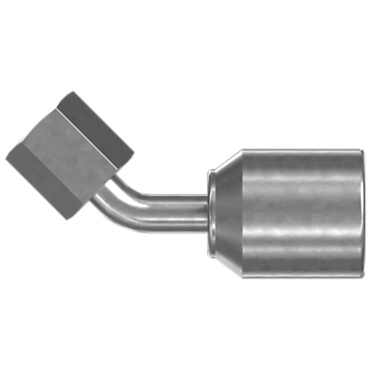

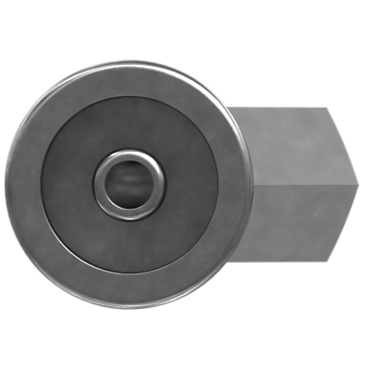

- Caterpillar 1241978 124-1978: Permanent Coupling | Cat Permanent Coupling JIC – 45 Degree Female Swivel
1241978 CATERPILLAR 124-1978: Permanent Coupling | Cat Permanent Coupling JIC – 45 Degree Female Swivel
| Manufacturer / Suplier | CATERPILLAR |
| Manufacturer's No. | 1241978 |
| Name | 124-1978: Permanent Coupling | Cat Permanent Coupling JIC – 45 Degree Female Swivel |
Connector: Permanent
Material: STEEL
Coating: Zinc Plated
Shape: 45 Deg
Connector Type: -4 JIC FEMALE SWIVEL
Drop Length (mm): 8
Drop Length (in): 0.31
Length (mm): 49
Cut-Off Factor (mm): 28
Cut-Off Factor (in): 1.1
Recommended Hose Size (mm): 6.4
Compatible With: SAE 100R1, SAE 100R2, SAE 100R5, SAE 100R16, COOLANT HOSE
Hex Size (mm): 14.29
Description: Permanent Coupling 4MN
Applications: Permanent Coupling for use with hydraulic hose. For additional information contact your CAT local dealer
Material: STEEL
Coating: Zinc Plated
Shape: 45 Deg
Connector Type: -4 JIC FEMALE SWIVEL
Drop Length (mm): 8
Drop Length (in): 0.31
Length (mm): 49
Cut-Off Factor (mm): 28
Cut-Off Factor (in): 1.1
Recommended Hose Size (mm): 6.4
Compatible With: SAE 100R1, SAE 100R2, SAE 100R5, SAE 100R16, COOLANT HOSE
Hex Size (mm): 14.29
Description: Permanent Coupling 4MN
Applications: Permanent Coupling for use with hydraulic hose. For additional information contact your CAT local dealer
