- Caterpillar 1241975 124-1975: Permanent Coupling | Cat Permanent Coupling ORFS – Straight Female Swivel

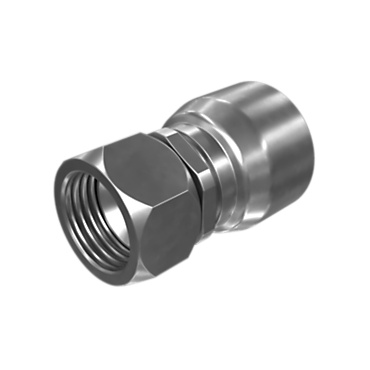

1241975 CATERPILLAR 124-1975: Permanent Coupling | Cat Permanent Coupling ORFS – Straight Female Swivel
| Manufacturer / Suplier | CATERPILLAR |
| Manufacturer's No. | 1241975 |
| Name | 124-1975: Permanent Coupling | Cat Permanent Coupling ORFS – Straight Female Swivel |
Connector: Permanent
Material: STEEL
Coating: Zinc Plated
Shape: Straight
Connector Type: -20 ORFS FEMALE SWIVEL
Length (mm): 74
Cut-Off Factor (mm): 34
Cut-Off Factor (in): 1.34
Recommended Hose Size (mm): 31.8
Compatible With: SAE 100R1, SAE 100R2, SAE 100R5, SAE 100R4
Hex Size (mm): 50.8
Seal Type: NBR 6V-8400, FKM 228-7094
Description: Permanent Coupling 20MN
Applications: Permanent Coupling for use with hydraulic hose. For additional information contact your CAT local dealer
Material: STEEL
Coating: Zinc Plated
Shape: Straight
Connector Type: -20 ORFS FEMALE SWIVEL
Length (mm): 74
Cut-Off Factor (mm): 34
Cut-Off Factor (in): 1.34
Recommended Hose Size (mm): 31.8
Compatible With: SAE 100R1, SAE 100R2, SAE 100R5, SAE 100R4
Hex Size (mm): 50.8
Seal Type: NBR 6V-8400, FKM 228-7094
Description: Permanent Coupling 20MN
Applications: Permanent Coupling for use with hydraulic hose. For additional information contact your CAT local dealer
