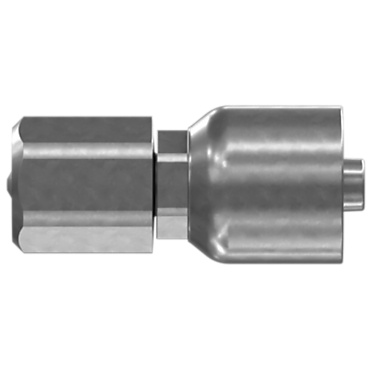

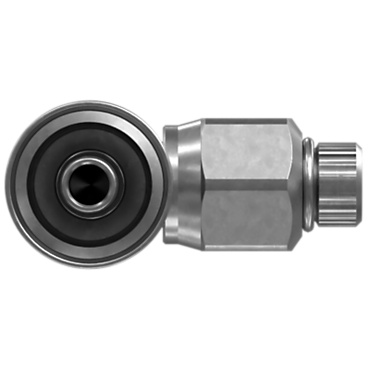

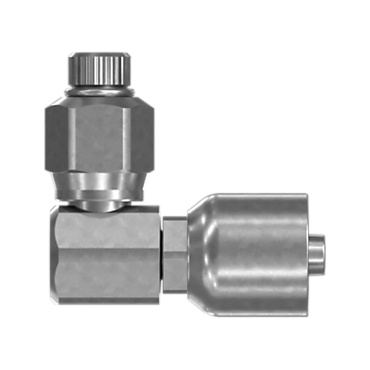

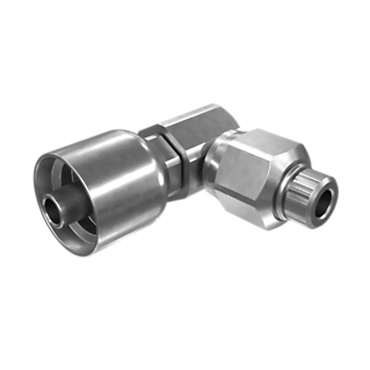

- Caterpillar 1241935 124-1935: STOR Swivel Elbow Hose Coupling | Cat® Coupling For 9.52mm Inner Diameter Hose
1241935 CATERPILLAR 124-1935: STOR Swivel Elbow Hose Coupling | Cat® Coupling For 9.52mm Inner Diameter Hose
| Manufacturer / Suplier | CATERPILLAR |
| Manufacturer's No. | 1241935 |
| Name | 124-1935: STOR Swivel Elbow Hose Coupling | Cat® Coupling For 9.52mm Inner Diameter Hose |
Connector: Permanent
Material: STEEL
Coating: Zinc Plated
Shape: 90 Deg
Connector Type: -6 STOR MALE
Drop Length (mm): 45
Drop Length (in): 1.77
Length (mm): 47
Cut-Off Factor (mm): 25
Cut-Off Factor (in): 0.98
Recommended Hose Size (mm): 9.52
Compatible With: SAE 100R1, SAE 100R2, SAE 100R5, SAE 100R16, SAE J1402, COOLANT HOSE
Hex Size (mm): 22.22
Seal Type: NBR 3J-1907, FKM 214-7568
Description: Permanent Coupling 6MN
Applications: Permanent Coupling for use with hydraulic hose. For additional information contact your CAT local dealer
Material: STEEL
Coating: Zinc Plated
Shape: 90 Deg
Connector Type: -6 STOR MALE
Drop Length (mm): 45
Drop Length (in): 1.77
Length (mm): 47
Cut-Off Factor (mm): 25
Cut-Off Factor (in): 0.98
Recommended Hose Size (mm): 9.52
Compatible With: SAE 100R1, SAE 100R2, SAE 100R5, SAE 100R16, SAE J1402, COOLANT HOSE
Hex Size (mm): 22.22
Seal Type: NBR 3J-1907, FKM 214-7568
Description: Permanent Coupling 6MN
Applications: Permanent Coupling for use with hydraulic hose. For additional information contact your CAT local dealer
