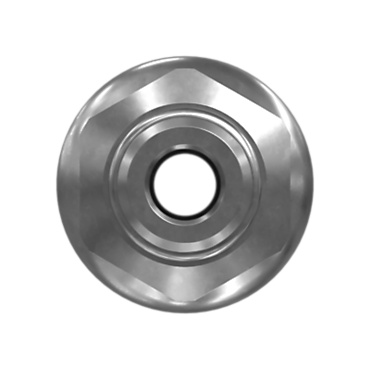

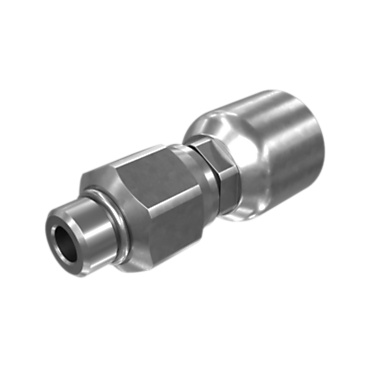

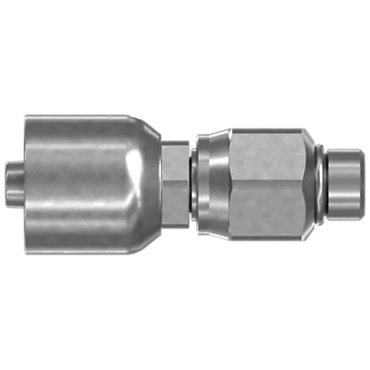

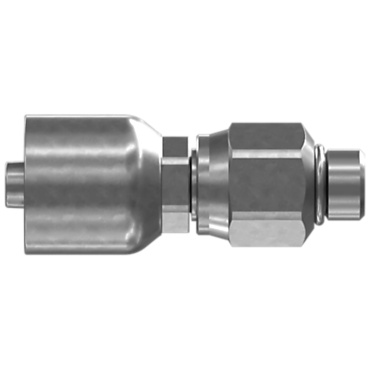

1241934 CATERPILLAR 124-1934: 22.22mm Hex Size Permanent Coupling | Cat® Permanent Coupling For 9.52mm Inner Diameter Hose
| Manufacturer / Suplier | CATERPILLAR |
| Manufacturer's No. | 1241934 |
| Name | 124-1934: 22.22mm Hex Size Permanent Coupling | Cat® Permanent Coupling For 9.52mm Inner Diameter Hose |
Connector: Permanent
Material: STEEL
Coating: Zinc Plated
Shape: Straight
Connector Type: -6 STOR MALE
Length (mm): 67
Cut-Off Factor (mm): 42
Cut-Off Factor (in): 1.65
Recommended Hose Size (mm): 9.52
Compatible With: SAE 100R1, SAE 100R2, SAE 100R5, SAE 100R16, SAE J1402, COOLANT HOSE
Hex Size (mm): 22.22
Seal Type: NBR 3J-1907, FKM 214-7568
Description: Permanent Coupling 6MN
Applications: Permanent Coupling for use with hydraulic hose. For additional information contact your CAT local dealer
Material: STEEL
Coating: Zinc Plated
Shape: Straight
Connector Type: -6 STOR MALE
Length (mm): 67
Cut-Off Factor (mm): 42
Cut-Off Factor (in): 1.65
Recommended Hose Size (mm): 9.52
Compatible With: SAE 100R1, SAE 100R2, SAE 100R5, SAE 100R16, SAE J1402, COOLANT HOSE
Hex Size (mm): 22.22
Seal Type: NBR 3J-1907, FKM 214-7568
Description: Permanent Coupling 6MN
Applications: Permanent Coupling for use with hydraulic hose. For additional information contact your CAT local dealer
