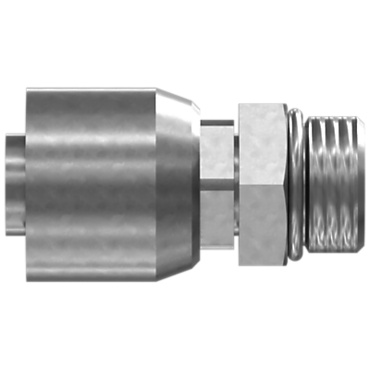

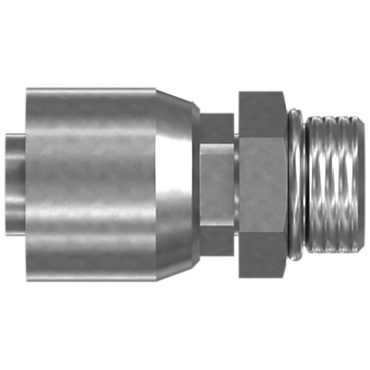

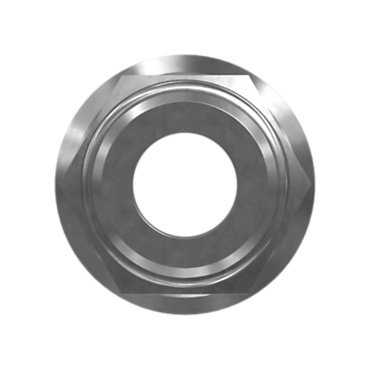

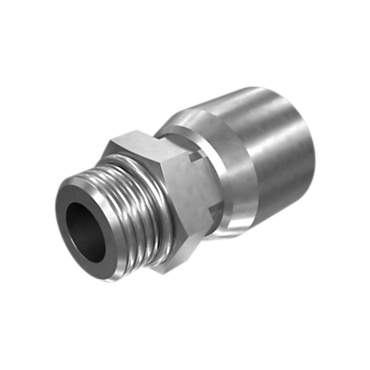

1241933 CATERPILLAR 124-1933: Permanent Coupling | Cat Permanent Coupling STOR – Straight Male

Connector: Permanent
Material: STEEL
Coating: Zinc Plated
Shape: Straight
Connector Type: -12 STOR MALE
Length (mm): 64
Cut-Off Factor (mm): 33
Cut-Off Factor (in): 1.3
Recommended Hose Size (mm): 19.1
Compatible With: SAE 100R1, SAE 100R2, SAE 100R4, SAE 100R5, SAE 100R16, SAE 100R19, COOLANT HOSE
Hex Size (mm): 31.75
Seal Type: NBR 3D-2824, FKM 238-5082
Description: Permanent Coupling 12MN
Applications: Permanent Coupling for use with hydraulic hose. For additional information contact your CAT local dealer
