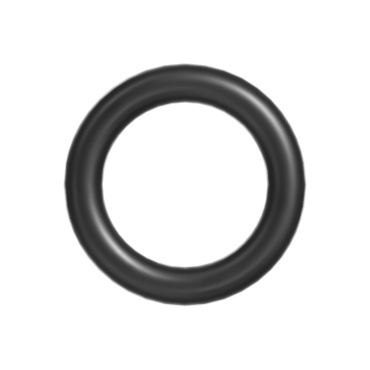

1123540 CATERPILLAR 112-3540: SEAL O RING

Applications: High temperature applications requiring resistance to air, fuels, lubricants and hydraulic fluids
Compatible With: Diester lubricants; Halogenated hydrocarbons (above 100 Deg. C); Highly resistant to compression set; Petroleum fluids; Phosphate ester fluids; Silicone fluids; Some acids
Dash Size (in): 317
Temperature (°F): -40° - 350°
Not Compatible With: Amines; Brake fluids; Engine Coolant; Fire Resistant Fluids; Ketones; Steam; Water
Primary Sealing Material: Rubber
Seal/O-Ring Type: Standard
Cross Section Diameter (in): 0.21
Inside Diameter (in): 0.912
Outside Diameter (in): 1.331
Hardness (Shore A): 75
SAE AS568 Dash Size: -317
Color: Dark Blue
Material: FKM (75)
Material Description: FKM rubber is capable of service temperatures of -40 to 150C and is resistant to air, fuel (including bio-diesel), lubricants and oils. FKM rubber should not be used in applications that require resistance to water or coolant.
Coating: PTFE coating protects the O-Ring from installation damage and provides ease of assembly.
Color Notes: Actual o-ring color may differ from image.
Notes: Dimensions and material descriptions provided for reference only.
