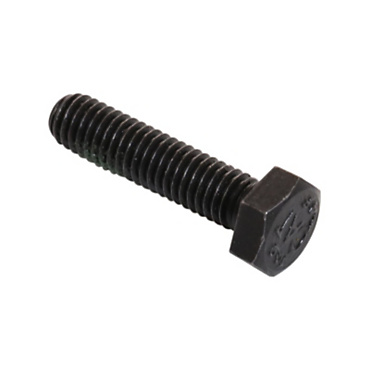

1091390 CATERPILLAR 109-1390: M6-1 x 25mm Hex Head Bolt | Hex Head Bolt

Lock Mechanism: NYLON PATCH
Bolt Length (mm): 25
Thread Size (dia x pitch) (mm): M6X1
Bolt Type: Hex Head
Head Height (mm): 4
Coating: Zinc Phosphate + Oil offers corrosion protection up to the point of assembly (recommend painting for external applications). Salt spray resistance of 72 hours to red rust. Coating color - dark grey to black.
Drive (mm): 10
Grip Length (mm): 3
Material: STEEL
Thread: Coarse
Material Description: ISO 898-1 Class 10.9. Head Marking - 10.9 (1040 MPa Ultimate Tensile Strength)
