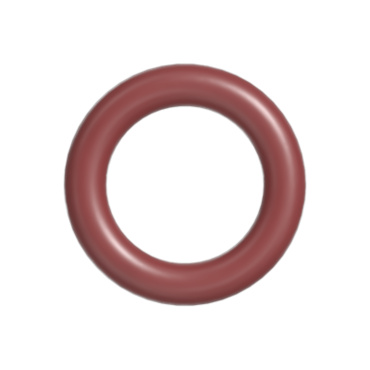

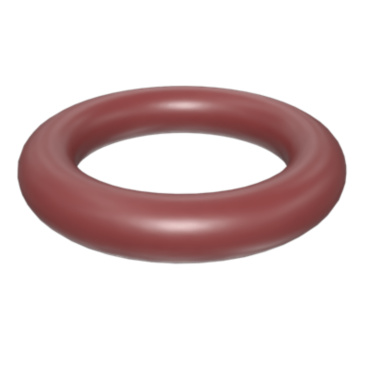

1090093 CATERPILLAR 109-0093: O-Ring

Compatible With: Abrasion resistant; Diesel fuels; Diester lubricants; Ozone; Petroleum oils, greases; Refrigerant HFC - 134a (Non-Freon); Silicone fluids; Steam; Water base engine coolants
Seal/O-Ring Type: Standard
Primary Sealing Material: Rubber
Not Compatible With: Aromatic and oxygenated gasolines; Automotive and aircraft brake fluids; Chlorinated hydrocarbons; Ethers; Ketones; Phosphate ester fluids
Temperature (°F): -40° - 275°
Dash Size (in): 902
Applications: Automotive air conditioner seals; High temperature flex boot seals; High temperature power steering seals; Higher temperature hydraulic seals; Middle cylinder liner seals
Cross Section Diameter (in): 0.064
Inside Diameter (in): 0.239
Outside Diameter (in): 0.367
Hardness (Shore A): 78
SAE AS568 Dash Size: -902
Color: Orange
Material: HNBR - Hydrogenated Nitrile
Material Description: HNBR rubber is capable of service temperatures of -40 to 115C and is resistant to fuel, oils, lubricants and offers good abrasion and cut resistance.
Coating: PTFE coating protects the O-Ring from installation damage and provides ease of assembly.
Color Notes: Actual o-ring color may differ from image.
Notes: Dimensions and material descriptions provided for reference only.
