- Caterpillar 1053484 105-3484: M10-1.5 x 25mm Hex Socket Head Bolt | Track Bolt

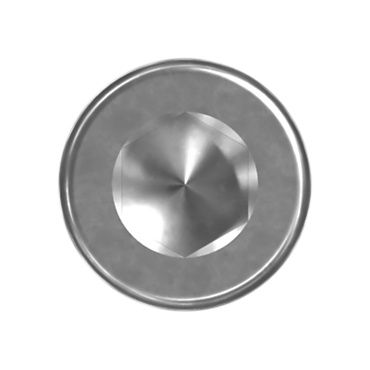

1053484 CATERPILLAR 105-3484: M10-1.5 x 25mm Hex Socket Head Bolt | Track Bolt
| Manufacturer / Suplier | CATERPILLAR |
| Manufacturer's No. | 1053484 |
| Name | 105-3484: M10-1.5 x 25mm Hex Socket Head Bolt | Track Bolt |
Bolt Type: SOCKET HEAD BOLT
Material: STEEL
Material Description: ISO 898-1 Class 12.9. Head Marking - 12.9 (1220 MPa Ultimate Tensile Strength)
Thread Size (dia x pitch) (mm): M10 X 1.5
Bolt Length (mm): 25
Drive Type: INTERNAL HEX
Drive (mm): 8
Grip Length (mm): 5
Head Height (mm): 10
Flange Type: Smooth Flange Face
Head Diameter (mm): 18
Bolt Size (mm): M10
Material: STEEL
Material Description: ISO 898-1 Class 12.9. Head Marking - 12.9 (1220 MPa Ultimate Tensile Strength)
Thread Size (dia x pitch) (mm): M10 X 1.5
Bolt Length (mm): 25
Drive Type: INTERNAL HEX
Drive (mm): 8
Grip Length (mm): 5
Head Height (mm): 10
Flange Type: Smooth Flange Face
Head Diameter (mm): 18
Bolt Size (mm): M10
