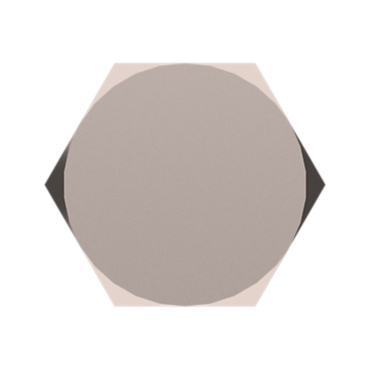

1036169 CATERPILLAR 103-6169: M16 X 2 Hexagonal Head Bolt | Cat® Self Locking Hexagonal Bolt for rear axle final drive sprocket retainer ensures a tight and reliable connection for the rear axle final drive, preventing any accidental disengagement

•
•
•
•

Manufacturer / Suplier	CATERPILLAR
Manufacturer's No.	1036169
Name	103-6169: M16 X 2 Hexagonal Head Bolt | Cat® Self Locking Hexagonal Bolt for rear axle final drive sprocket retainer ensures a tight and reliable connection for the rear axle final drive, preventing any accidental disengagement

Lock Mechanism: THREAD SEALANT / ADHESIVE
Bolt Length (mm): 60
Thread Size (dia x pitch) (mm): M16X2
Bolt Type: Hex Head
Head Height (mm): 10
Coating: Zinc Phosphate + Oil offers corrosion protection up to the point of assembly (recommend painting for external applications). Salt spray resistance of 72 hours to red rust. Coating color - dark grey to black.
Drive (mm): 24
Grip Length (mm): 6
Material: STEEL
Thread: Coarse
Material Description: ISO 898-1 Class 10.9. Head Marking - 10.9 (1040 MPa Ultimate Tensile Strength)
Thread Size (mm): M16
Grade: 10.9
Locking Feature: Adhesive Patch
Hole Thread Pitch: 2.00
Overall Length (mm): 60
