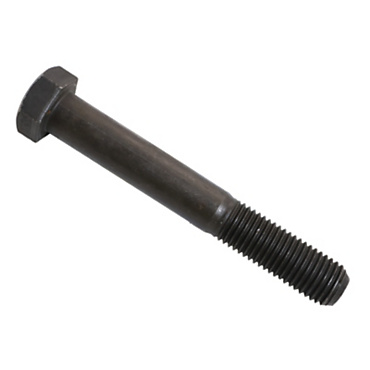

1026445 CATERPILLAR 102-6445: M24-3 x 170mm Hex Head Bolt | Hex Head Bolt

Thread Size (dia x pitch) (mm): M24X3
Bolt Length (mm): 170
Head Height (mm): 15
Bolt Type: Hex Head
Coating: Zinc Phosphate + Oil offers corrosion protection up to the point of assembly (recommend painting for external applications). Salt spray resistance of 72 hours to red rust. Coating color - dark grey to black.
Drive (mm): 36
Material: STEEL
Grip Length (mm): 110
Thread: Coarse
Material Description: Cat Class 11.9. Head Marking - 11.9 (1170 MPa Ultimate Tensile Strength)
