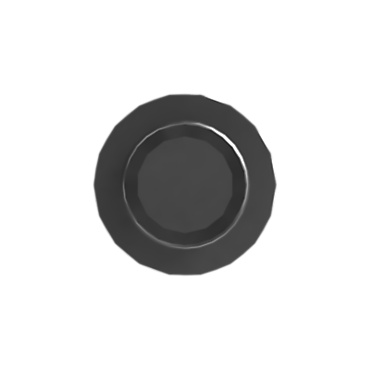

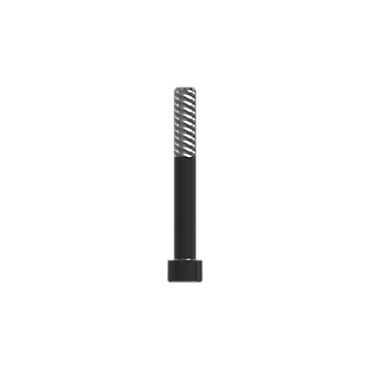

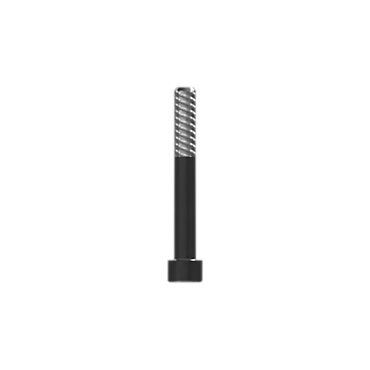

1017403 CATERPILLAR 101-7403: M10-1.5 x 80mm Hex Socket Head Bolt | HEX SOCKET HEAD CAP SCREW / BOLT
| Manufacturer / Suplier | CATERPILLAR |
| Manufacturer's No. | 1017403 |
| Name | 101-7403: M10-1.5 x 80mm Hex Socket Head Bolt | HEX SOCKET HEAD CAP SCREW / BOLT |
Bolt Type: SOCKET HEAD BOLT
Material: STEEL
Material Description: ISO 898-1 Class 12.9. Head Marking - 12.9 (1220 MPa Ultimate Tensile Strength)
Coating: Zinc Flake
Thread Size (dia x pitch) (mm): M10 X 1.5
Bolt Length (mm): 80
Drive Type: INTERNAL HEX
Drive (mm): 8
Grip Length (mm): 48
Head Height (mm): 10
Flange Type: Smooth Flange Face
Head Diameter (mm): 16
Material: STEEL
Material Description: ISO 898-1 Class 12.9. Head Marking - 12.9 (1220 MPa Ultimate Tensile Strength)
Coating: Zinc Flake
Thread Size (dia x pitch) (mm): M10 X 1.5
Bolt Length (mm): 80
Drive Type: INTERNAL HEX
Drive (mm): 8
Grip Length (mm): 48
Head Height (mm): 10
Flange Type: Smooth Flange Face
Head Diameter (mm): 16
