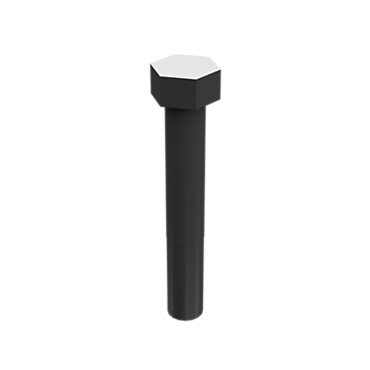

0V0459 CATERPILLAR 0V-0459: 5/8 - 18 Thread Hex Head Bolt | Cat® Hex Head Bolt for the flywheel is designed to secure the flywheel in internal combustion engines

Manufacturer / Suplier CATERPILLAR
Manufacturer's No. 0V0459
Name 0V-0459: 5/8 - 18 Thread Hex Head Bolt | Cat® Hex Head Bolt for the flywheel is designed to secure the flywheel in internal combustion engines
Bolt Length (mm): 101.6
Bolt Type: Hex Head
Grip Length (mm): 63.5
Thread: Fine
Material: Steel
Material Description: SAE J429 Grade 8. Head Marking - 6 radial lines (150 ksi Ultimate Tensile Strength)
Head Height (mm): 11.90625
Thread Size (mm): .625
Hole Thread Pitch: 18
Drive (mm): 23.8125
Finish: Phosphate and Oil Coated
Coating: 0
Grade: 8
Locking Feature: 0
Overall Length (mm): 101.6
