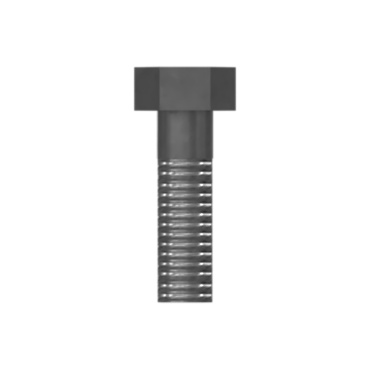

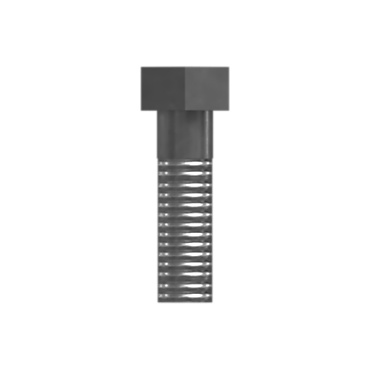

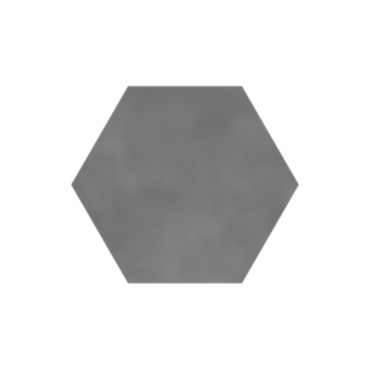

0T0772 CATERPILLAR 0T-0772: 7/16 - 14 Thread Hex Head Bolt | Cat® Hex Head Bolt for flywheel housing provides fastening to connect the flywheel housing, a protective casing for the flywheel and clutch

Manufacturer / Suplier CATERPILLAR
Manufacturer's No. 0T0772
Name 0T-0772: 7/16 - 14 Thread Hex Head Bolt | Cat® Hex Head Bolt for flywheel housing provides fastening to connect the flywheel housing, a protective casing for the flywheel and clutch
Cross 3E-6640; 178-2210
Bolt Length (mm): 38.1
Bolt Type: Hex Head
Coating: Zinc Phosphate + Oil offers corrosion protection up to the point of assembly (recommend painting for external applications). Salt spray resistance of 72 hours to red rust. Coating color - dark grey to black.
Grip Length (mm): 9.53
Material: Steel
Thread: Coarse
Material Description: SAE J429 Grade 8. Head Marking - 6 radial lines (150 ksi Ultimate Tensile Strength)
Head Height (mm): 8.334375
Thread Size (mm): .437
Hole Thread Pitch: 14
Drive (mm): 17.4625
Finish: Phosphate and Oil Coated
Grade: 8
Locking Feature: 0
Overall Length (mm): 38.1
