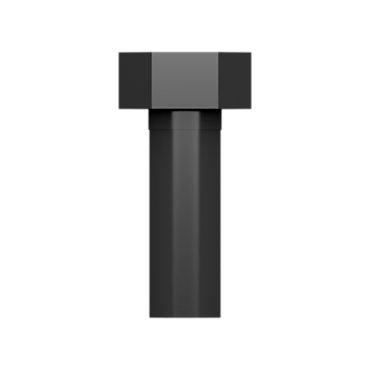

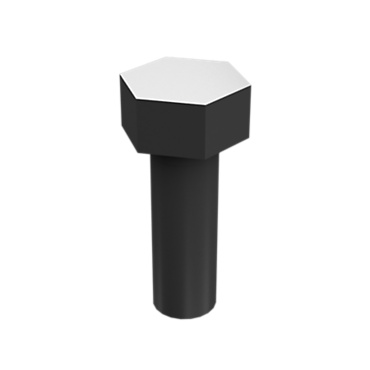

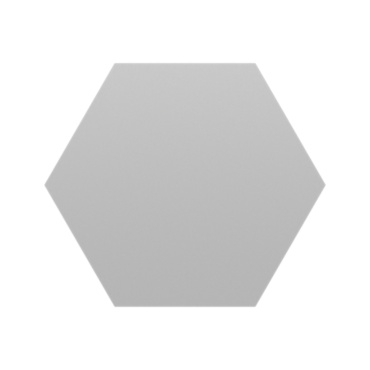

0T0320 CATERPILLAR 0T-0320: 7/16''-14 x 1 1/4'' Hex Head Bolt | Inch

Bolt Length (mm): 31.75
Bolt Type: Hex Head
Coating: Zinc Phosphate + Oil offers corrosion protection up to the point of assembly (recommend painting for external applications). Salt spray resistance of 72 hours to red rust. Coating color - dark grey to black.
Grip Length (mm): 3.17
Material: Steel
Thread: Coarse
Material Description: SAE J429 Grade 8. Head Marking - 6 radial lines (150 ksi Ultimate Tensile Strength)
Head Height (mm): 8.334375
Thread Size (mm): .437
Hole Thread Pitch: 14
Drive (mm): 17.4625
Finish: Phosphate and Oil Coated
Grade: 8
Locking Feature: 0
Overall Length (mm): 31.75
