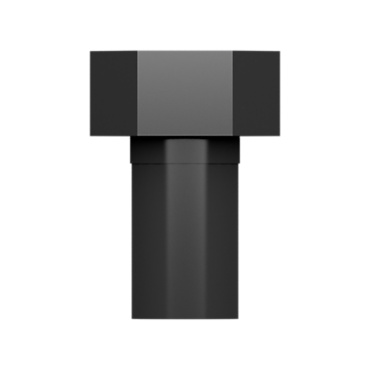

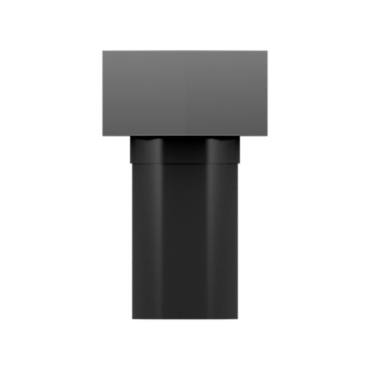

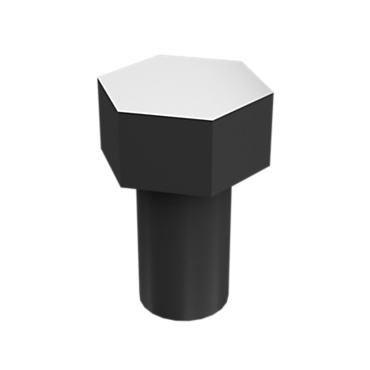

0T0102 CATERPILLAR 0T-0102: 3/8''-16 x 5/8'' Hex Head Bolt | Cat®External Hex Bolt (Mounting Group, Wiring Group)

Bolt Length (mm): 15.88
Bolt Type: Hex Head
Coating: Zinc Phosphate + Oil offers corrosion protection up to the point of assembly (recommend painting for external applications). Salt spray resistance of 72 hours to red rust. Coating color - dark grey to black.
Grip Length (mm): 2.38
Material: Steel
Thread: Coarse
Material Description: SAE J429 Grade 8. Head Marking - 6 radial lines (150 ksi Ultimate Tensile Strength)
Head Height (mm): 7.14375
Thread Size (mm): .375
Hole Thread Pitch: 16
Drive (mm): 14.2875
Finish: Phosphate and Oil Coated
Grade: 8
Locking Feature: 0
Overall Length (mm): 15.875
