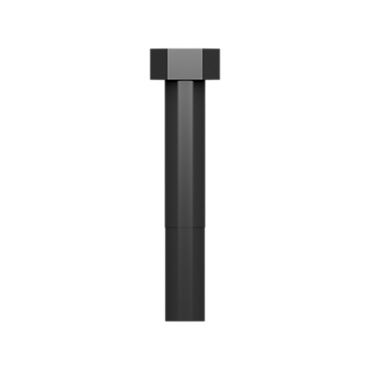

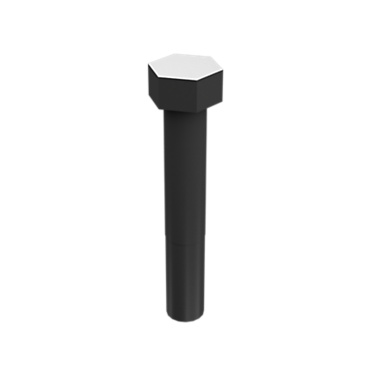

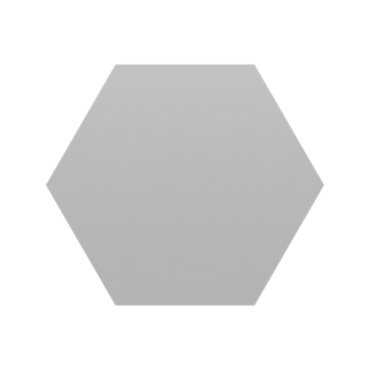

0S1627 CATERPILLAR 0S-1627: 3/4-10 Hexagonal Head Bolt | Cat® Hexagonal Head Bolt is a fastener that provides secure and reliable connections due to their hexagonal-shaped heads

Manufacturer / Suplier CATERPILLAR
Manufacturer's No. 0S1627
Name 0S-1627: 3/4-10 Hexagonal Head Bolt | Cat® Hexagonal Head Bolt is a fastener that provides secure and reliable connections due to their hexagonal-shaped heads
Bolt Length (mm): 114.3
Bolt Type: Hex Head
Coating: Zinc Phosphate + Oil offers corrosion protection up to the point of assembly (recommend painting for external applications). Salt spray resistance of 72 hours to red rust. Coating color - dark grey to black.
Grip Length (mm): 69.85
Material: Steel
Thread: Coarse
Material Description: SAE J429 Grade 8. Head Marking - 6 radial lines (150 ksi Ultimate Tensile Strength)
Head Height (mm): 14.2875
Thread Size (mm): .750
Hole Thread Pitch: 10
Drive (mm): 28.575
Finish: Phosphate and Oil Coated
Grade: 8
Locking Feature: 0
Overall Length (mm): 114.3
