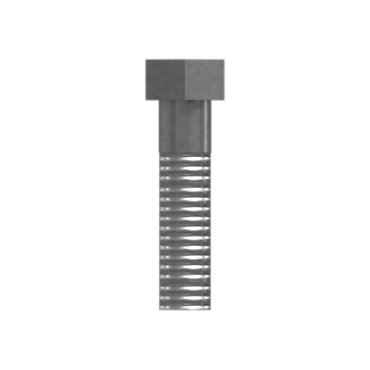

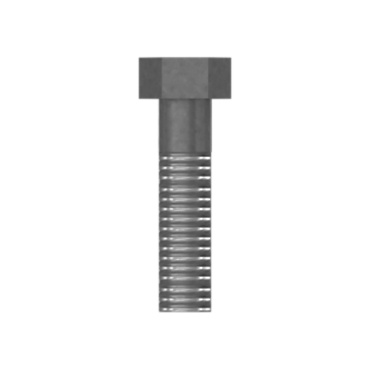

0S1625 CATERPILLAR 0S-1625: 5/8''-11 x 2 1/2'' Hex Head Bolt | Track Bolt

Bolt Length (mm): 63.5
Bolt Type: Hex Head
Coating: Zinc Phosphate + Oil offers corrosion protection up to the point of assembly (recommend painting for external applications). Salt spray resistance of 72 hours to red rust. Coating color - dark grey to black.
Grip Length (mm): 15.88
Material: Steel
Thread: Coarse
Material Description: Head Marking - 7 radial lines (170 ksi Ultimate Tensile Strength)
Head Height (mm): 11.90625
Thread Size (mm): .625
Hole Thread Pitch: 11
Drive (mm): 23.81
Finish: Phosphate and Oil Coated
Grade: 11.9
Locking Feature: 0
Hardened Notes: High strength bolt
Overall Length (mm): 63.5
