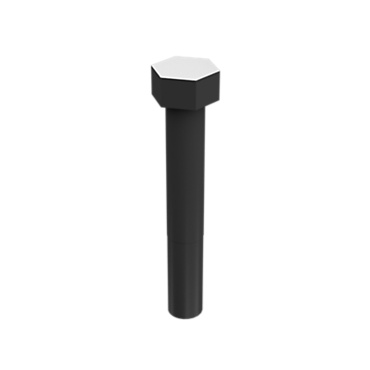

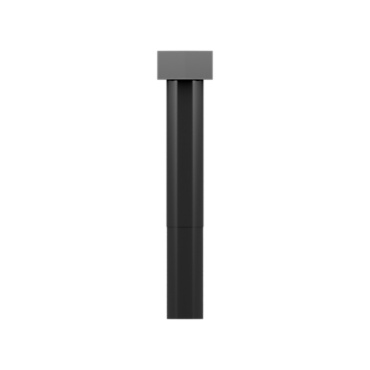

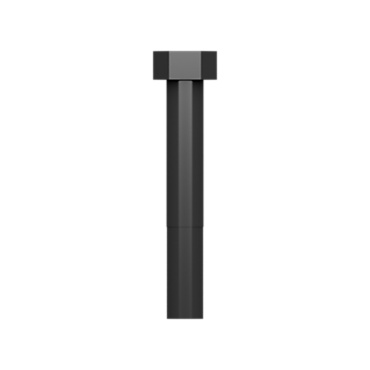

0L1558 CATERPILLAR 0L-1558: 1/2-20 Hexagonal Head Bolt | Cat® Hexagonal Head Bolt is a fastener that provides secure and reliable connections due to their hexagonal-shaped heads

Manufacturer / Suplier CATERPILLAR
Manufacturer's No. 0L1558
Name 0L-1558: 1/2-20 Hexagonal Head Bolt | Cat® Hexagonal Head Bolt is a fastener that provides secure and reliable connections due to their hexagonal-shaped heads
Bolt Length (mm): 82.55
Bolt Type: Hex Head
Grip Length (mm): 50.8
Thread: Fine
Material: Steel
Material Description: SAE J429 Grade 8. Head Marking - 6 radial lines (150 ksi Ultimate Tensile Strength)
Head Height (mm): 9.525
Thread Size (mm): .500
Hole Thread Pitch: 20
Drive (mm): 19.05
Finish: Phosphate and Oil Coated
Coating: 0
Grade: 8
Locking Feature: 0
Overall Length (mm): 82.55
