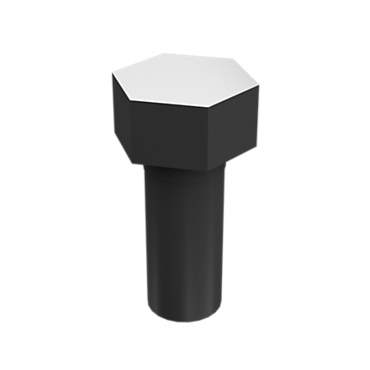

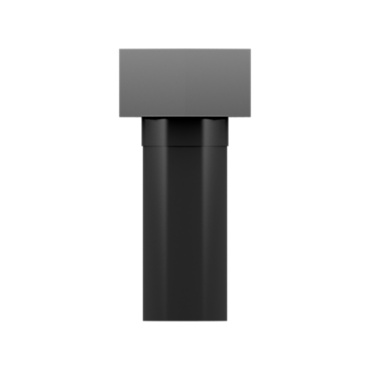

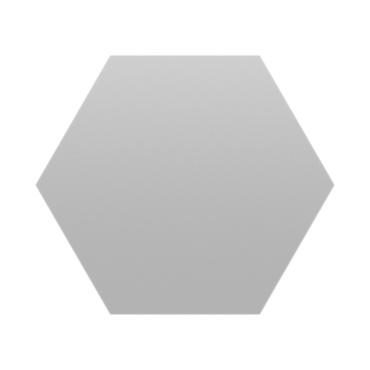

0L1351 CATERPILLAR 0L-1351: 3/8 - 16 Thread Hex Head Bolt | Cat® Hex Head Bolt for the engine is a threaded fastener with a six-sided head, used to secure engine components in place

Bolt Length (mm): 22.23
Bolt Type: Hex Head
Coating: Zinc Phosphate + Oil offers corrosion protection up to the point of assembly (recommend painting for external applications). Salt spray resistance of 72 hours to red rust. Coating color - dark grey to black.
Grip Length (mm): 3.17
Material: Steel
Thread: Coarse
Material Description: SAE J429 Grade 8. Head Marking - 6 radial lines (150 ksi Ultimate Tensile Strength)
Head Height (mm): 7.14375
Thread Size (mm): .375
Grade: 8
Locking Feature: 0
Hole Thread Pitch: 16
Drive (mm): 14.2875
Overall Length (mm): 22.225
