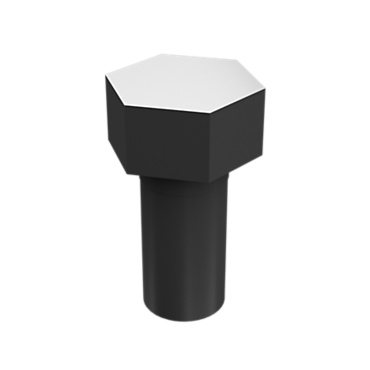

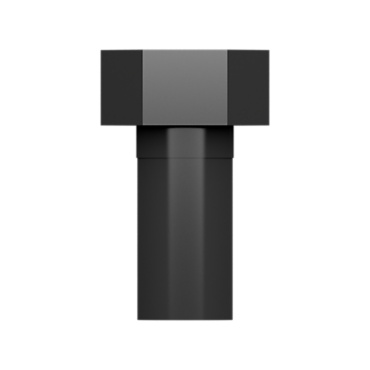

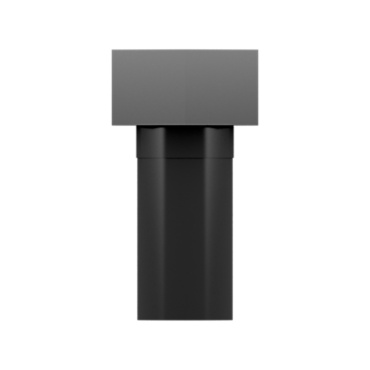

0L0472 CATERPILLAR 0L-0472: 3/8-24 Hexagonal Head Bolt | Cat® Hexagonal Head Bolt is a fastener that provides secure and reliable connections due to their hexagonal-shaped heads

Manufacturer / Suplier CATERPILLAR
Manufacturer's No. 0L0472
Name 0L-0472: 3/8-24 Hexagonal Head Bolt | Cat® Hexagonal Head Bolt is a fastener that provides secure and reliable connections due to their hexagonal-shaped heads
Bolt Length (mm): 19.05
Bolt Type: Hex Head
Grip Length (mm): 3.17
Thread: Fine
Material: Steel
Material Description: SAE J429 Grade 8. Head Marking - 6 radial lines (150 ksi Ultimate Tensile Strength)
Head Height (mm): 7.14375
Thread Size (mm): .375
Hole Thread Pitch: 24
Drive (mm): 14.2875
Finish: Phosphate and Oil Coated
Coating: 0
Grade: 8
Locking Feature: 0
Overall Length (mm): 19.05
