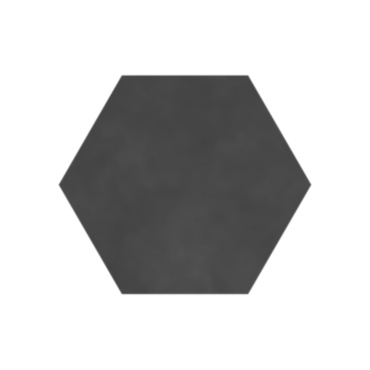

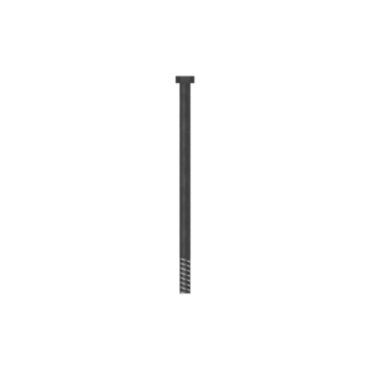

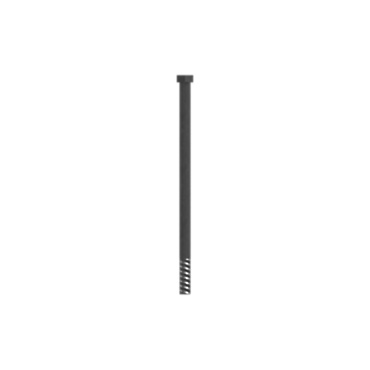

0986000 CATERPILLAR 098-6000: M20-2.5 x 390mm Hex Head Bolt | Cat® Hex Head Bolt

Thread Size (dia x pitch) (mm): M20X2.5
Bolt Length (mm): 390
Head Height (mm): 13
Bolt Type: Hex Head
Coating: Zinc Phosphate + Oil offers corrosion protection up to the point of assembly (recommend painting for external applications). Salt spray resistance of 72 hours to red rust. Coating color - dark grey to black.
Drive (mm): 30
Grip Length (mm): 325
Material: Steel
Thread: Coarse
Material Description: ISO 898-1 Class 10.9. Head Marking - 10.9 (1040 MPa Ultimate Tensile Strength)
