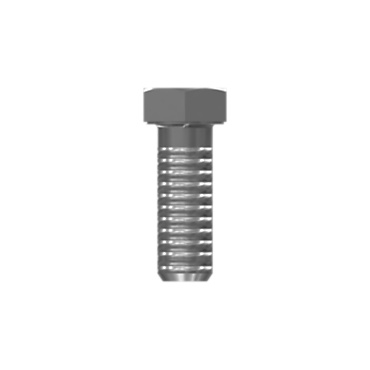

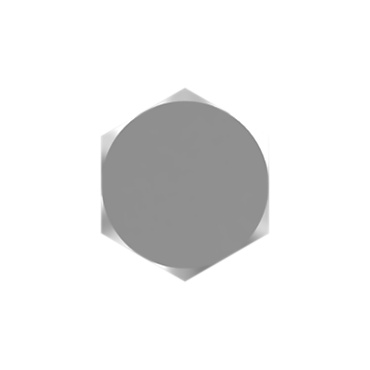

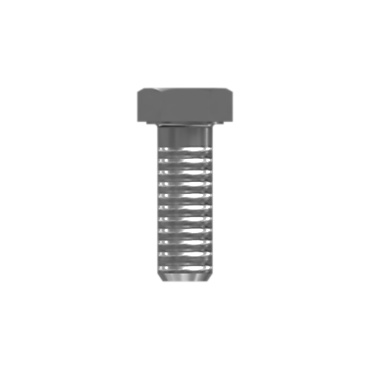

0859768 CATERPILLAR 085-9768: M14X2 Hex Head Bolt | Cat® A Hex Head Bolt is a fastener that creates a clamping force and holds the connected parts in place, preventing movement and minimizing vibrations.

Manufacturer / Suplier CATERPILLAR
Manufacturer's No. 0859768
Name 085-9768: M14X2 Hex Head Bolt | Cat® A Hex Head Bolt is a fastener that creates a clamping force and holds the connected parts in place, preventing movement and minimizing vibrations.
Thread Size (dia x pitch) (mm): M14X2
Bolt Length (mm): 40
Head Height (mm): 9
Bolt Type: Hex Head
Drive (mm): 21
Grip Length (mm): 6
Thread: Coarse
Material: Steel
Material Description: ISO 898-1 Class 10.9. Head Marking - 10.9 (1040 MPa Ultimate Tensile Strength)
Coating: Zinc Plated
