0336041 CATERPILLAR 033-6041: O-RING

Not Compatible With: Amines; Brake fluids; Engine Coolant; Fire Resistant Fluids; Ketones; Steam; Water
Compatible With: Diester lubricants; Halogenated hydrocarbons (above 100 Deg. C); Highly resistant to compression set; Petroleum fluids; Phosphate ester fluids; Silicone fluids; Some acids
Dash Size (in): 117
Temperature (°F): -40 - 350
Applications: High pressure, high temperature applications requiring resistance to air, fuels, lubricants and hydraulic fluids; ORFS, STORS seals
Seal/O-Ring Type: Standard
Primary Sealing Material: Rubber
Cross Section Diameter (in): 0.103
Inside Diameter (in): 0.799
Outside Diameter (in): 1.005
Hardness (Shore A): 90
SAE AS568 Dash Size: -117
Color: Green
Material: FKM - Fluoroelastomer
Material Description: FKM rubber is capable of service temperatures of -40 to 150C and is resistant to air, fuel (including bio-diesel), lubricants and oils. FKM rubber should not be used in applications that require resistance to water or coolant.
Coating: None

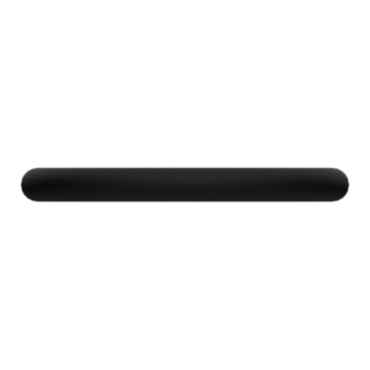

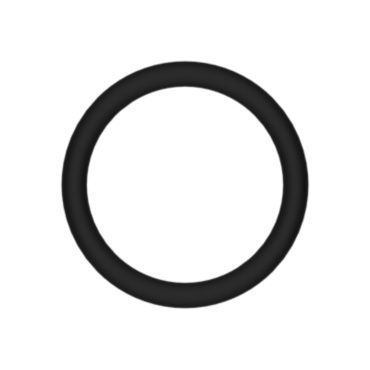

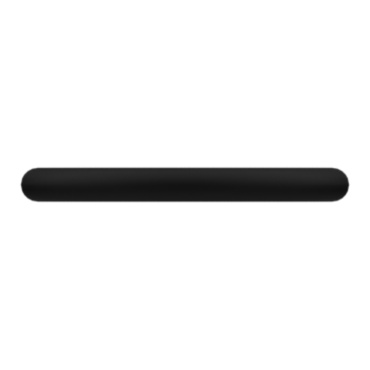

Color Notes: Actual o-ring color may differ from image.
Notes: Dimensions and material descriptions provided for reference only.
